Comprehensive Guide to Closed Circuit Tertiary Crushing and Screening Plants

Closed circuit tertiary crushing and screening plants are integral components in modern aggregate production, particularly in the construction and mining industries. These plants are designed to process materials into specific sizes, ensuring high-quality aggregates suitable for various applications.

What Are Closed Circuit Tertiary Crushing and Screening Plants?

These plants operate in a closed-loop system, where the material is continuously processed until it reaches the desired size. The process involves several stages:

1. Primary Crushing: The initial reduction of raw material size.

2. Secondary Crushing: Further reduction to achieve intermediate sizes.

3. Tertiary Crushing: Fine crushing to produce the final desired sizes.

4. Screening: Separation of materials into different sizes using vibrating screens.

5. Recycling: Returning oversized materials back into the system for further processing.​

Key Components

• Tertiary Crushers: Typically impact crushers or cone crushers that provide fine material output.

• Vibrating Screens: Separate materials into different size fractions.

• Conveyors: Transport materials between different stages of the plant.

• Dust Suppression Systems: Minimize airborne dust during processing.

• Control Systems: Monitor and adjust plant operations for optimal performance.​

Advantages of Closed Circuit Systems

• High Efficiency: Continuous processing leads to consistent product quality.

• Cost-Effective: Reduces the need for external screening and reprocessing.

• Environmental Benefits: Minimizes waste and dust emissions.

• Flexibility: Adjustable to produce various aggregate sizes as needed.​EarthWORKS Machinery+2Promac Processing Machinery+2Dragon Crushers+2Dragon Crushers+3EarthWORKS Machinery+3Dragon Crushers+3

Applications

• Construction Projects: Providing aggregates for concrete and asphalt production.

• Road Construction: Supplying materials for base layers and surface courses.

• Mining Operations: Processing extracted materials for further use.

• Recycling Facilities: Reprocessing construction and demolition waste.​EarthWORKS Machinery+1Dragon Crushers+1

Notable Models in the Market

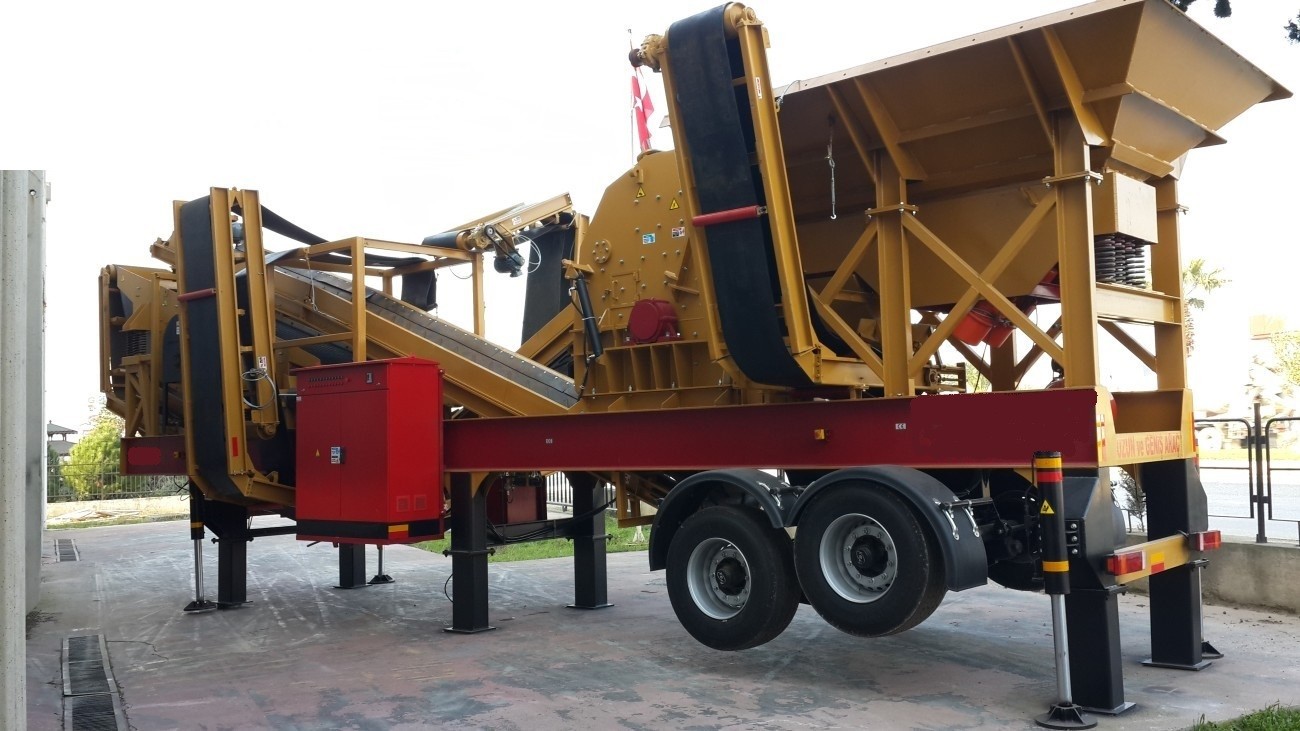

DRG 35 – Mobile Closed Circuit Tertiary Crushing and Screening Plant

The DRG 35 is a mobile plant designed for quick setup and high mobility. Key features include:​Drg Makina

• Rotor Size: 1100 x 600 mm with replaceable wear parts.

• Crusher Type: Specialized secondary impact crusher.

• Screening System: High-capacity 2-deck vibrating screen (1300 x 3500 mm).

• Power Supply: 165 kW total motor power.

• Production Capacity: 60–100 tons per hour.​EarthWORKS Machinery+1Drg Makina+1Drg Makina

This model is suitable for producing fine aggregates for various applications. ​

Industry Trends

• Automation: Integration of advanced control systems for real-time monitoring and optimization.

• Energy Efficiency: Focus on reducing energy consumption through efficient design and operation.

• Sustainability: Emphasis on recycling and minimizing environmental impact.

• Customization: Tailoring plants to specific project requirements and material types.​

Conclusion

Closed circuit tertiary crushing and screening plants are essential for producing high-quality aggregates efficiently and sustainably. Models like the DRG 35 exemplify the advancements in technology and design, offering solutions for various industrial needs. As the industry continues to evolve, these plants play a pivotal role in meeting the growing demand for quality materials in construction and mining sectors.
